50T Press Fully Automatic Production Line for Marine Insulation Board

Name: 50T Press Fully Automatic Production Line for Marine Insulation Board
Brand: LONGYU
Price: 1 USD

Brand Name : LONGYU

MOQ : 1Set

Price : Negotiable

Payment Terms : ,T/T

Supply Ability : 1Set/month

Delivery Time : 45-90 days

Packaging Details : Standard wooden case

Materialtype : Marine Grade Plywood

Drying method : Hot Pressing

Product name : Marine Board Production Line

Automation level : High Automation

Surface finish : Smooth and Waterproof

Certification : CE,ISO9001,SGS,BV,ISO

Color : Customizable,Blue,Requirement,Optional,Customized

Product type : Plastic profile,WPC PVC board,Plastic Sheet,Foam board,PVC ceiling

Contact Now

Automatic Production Line for Marine Insulation Board

Specifications

Parameter Category	Item	Specification
Board Processing	Applicable Board Width	0.5 - 1.3 m (Customizable)
	Applicable Board Length	2 - 3 m
	Facing Material Thickness	1 - 3 mm
Production Line	Total Equipment Length	62 m (Customizable)
	Production Efficiency	2 boards per minute (for 3m board)
Glue Pouring System	Work Coating Amount	500 - 4000 g/min
	Flow Accuracy	≤ ±5%
	Glue Nozzle Hole Pitch	8 mm
	Coating Width Range	500 - 1300 mm (Optional)
	Glue per Unit Area	200 - 500 g/m²
	Adhesive Viscosity	≤ 25,000 mpa.s
	Adhesive Type	Two-component
Pressing Unit	Press Pressure	50 Tons (Optional)
Utilities	Air Supply	0.6 - 0.8 MPa
	Power Supply	380V 50Hz 3-Phase (Optional)
	Maximum Power (Whole Line)	370 KW

50T Press Fully Automatic Production Line for Marine Insulation Board

Quick Detail

1. Integrated Production Line: Complete automated solution from glue application to pressing for marine insulation boards.

2. High-Precision Glue Pouring: ±5% accuracy, 500-4000g/min flow range, 8mm nozzle pitch.

3. Customizable Board Sizes: Handles boards up to 1.3m wide, 3m long, and 3mm thick (for facing materials).

4. Efficient Pressing: Integrated 50T press with production speed of 2 boards per minute.

5. Total Length 62M: Modular design with customization options.

50T Press Fully Automatic Production Line for Marine Insulation Board

Applications:

1. Production of marine insulation partition boards for ships and vessels.

2. Composite panel manufacturing for other demanding environments requiring high bond strength.

Product Tags:

50T Fully Automatic Production Line

Fully Automatic Board Production Line

Marine Insulation Board Production Line

Wholesale 50T Press Fully Automatic Production Line for Marine Insulation Board from china suppliers

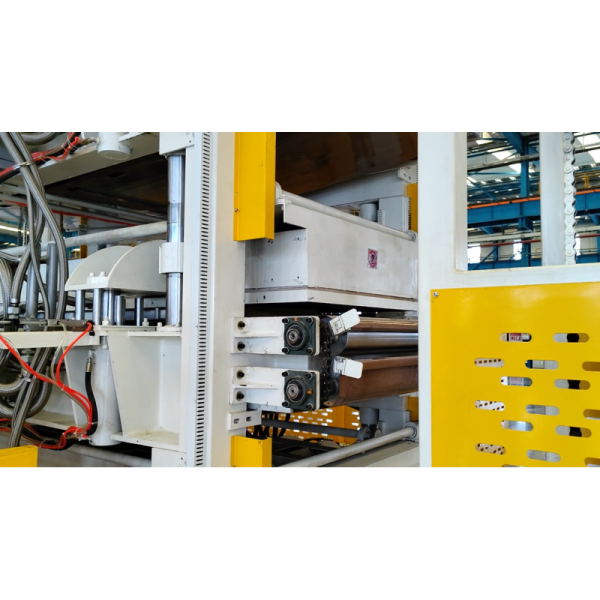

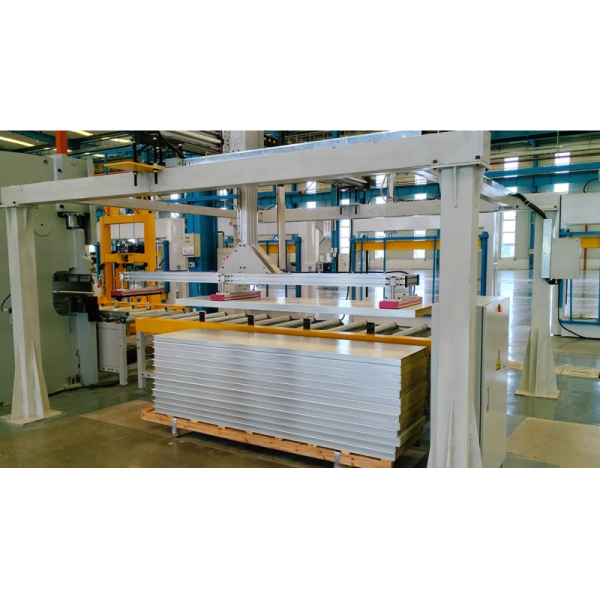

50T Press Fully Automatic Production Line for Marine Insulation Board Images
